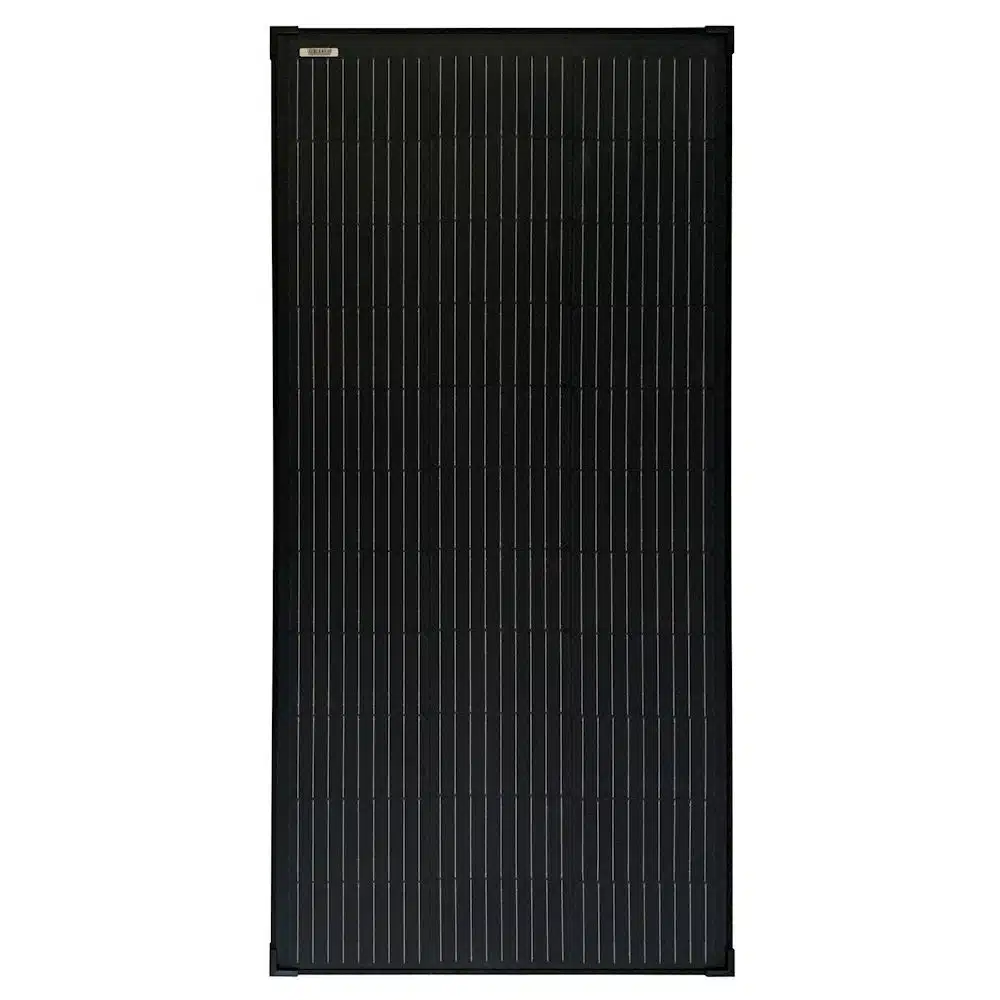

This panel has no glass which makes it very light weight.
The coating is a clear coat to protect the solar cells from the weather.
The light weight black aluminium frame is 17mm, which allows for mounting brackets to be attached.

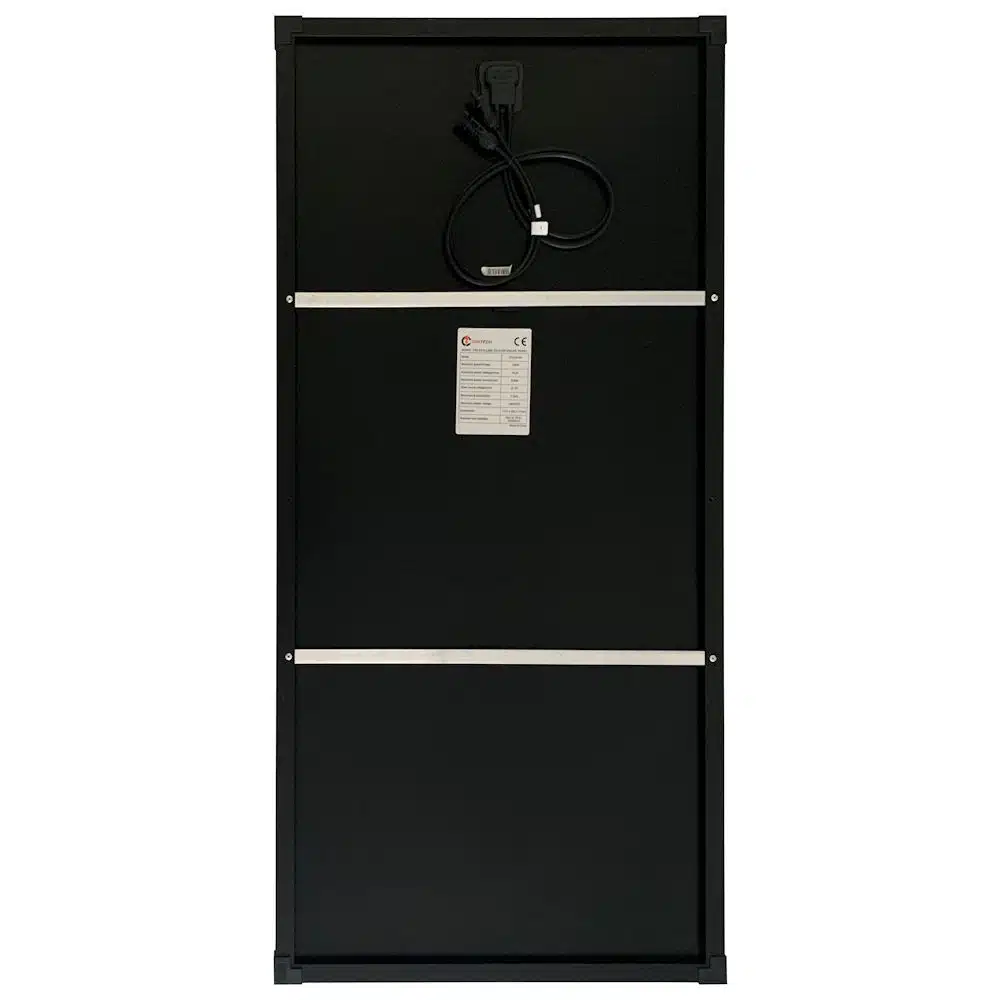

To strengthen the 120W Lightweight Aluminium Framed Solar Panel two gussets are installed.
Wiring consists of 800mm length wire with quick release solar connectors installed.

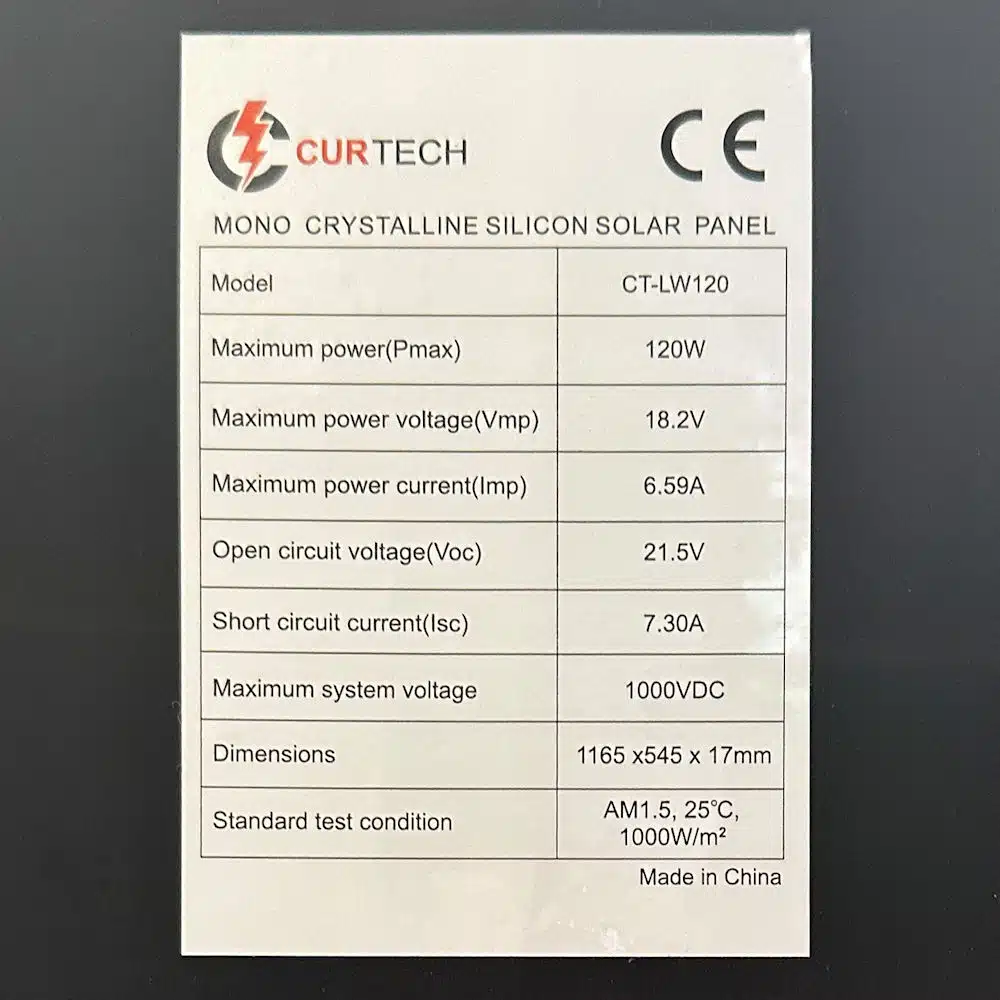

| Maximum power (Pmax) | 120W |
| Maximum power voltage (Vmp) | 18.2V |
| Maximum power current (Imp) | 6.59A |
| Open circuit voltage (Voc) | 21.5V |
| Short circuit current (Isc) | 7.30A |
| Maximum system voltage | 1000VDC |
| Dimensions | 1165 x 545 x 17mm |
| Weight | 3.3kg |
When cleaning panel use water only.
