Installation can be done using the eyelets in the edges of the panel or glued directly to the mounting surface.
When gluing direct to a surface no mounting brackets are required.

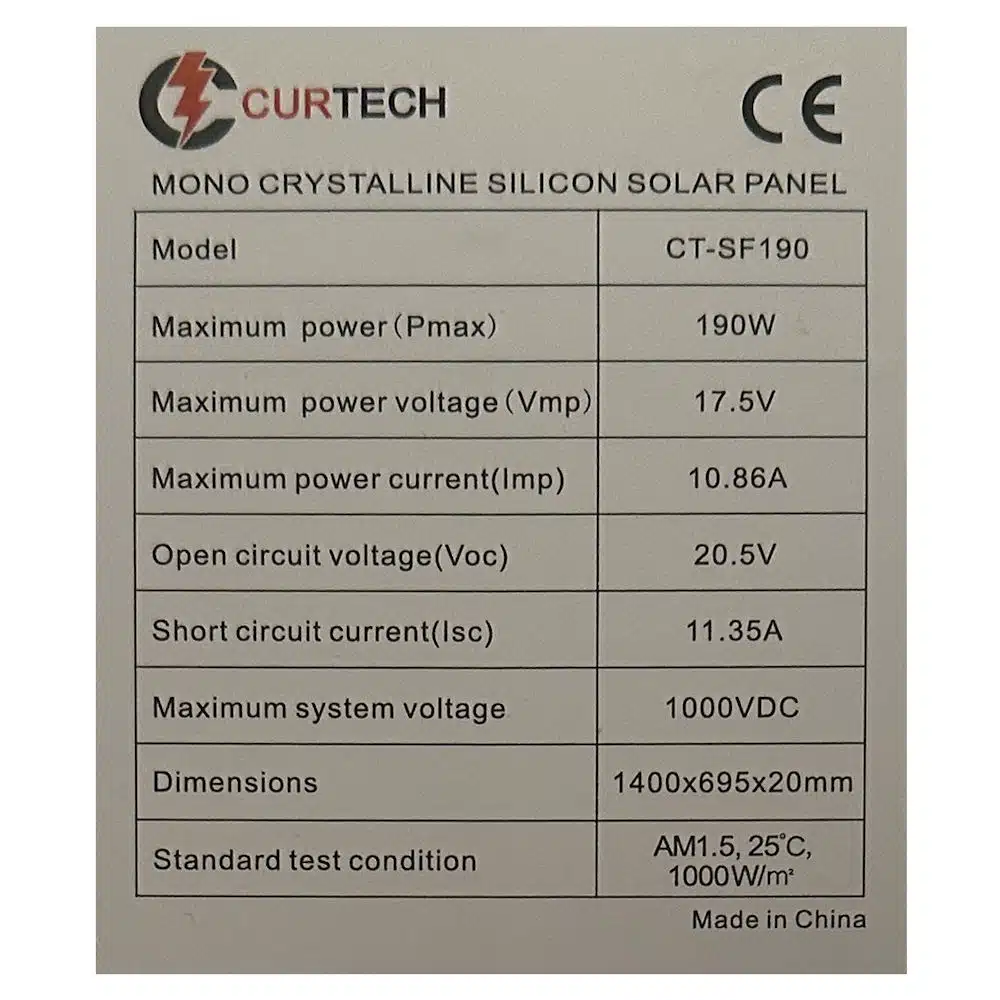

| Maximum power (Pmax) | 190W |
| Maximum power voltage (Vmp) | 17.5V |
| Maximum power current (Imp) | 10.86A |
| Open circuit voltage (Voc) | 20.5V |
| Short circuit voltage (Isc) | 11.35A |
| Maximum system voltage | 1000VDC |
| Dimensions | 1400 x 695 x 3mm (20mm with J-Box) |
| Weight | 3.7kg |
When cleaning panel use water only.
