New

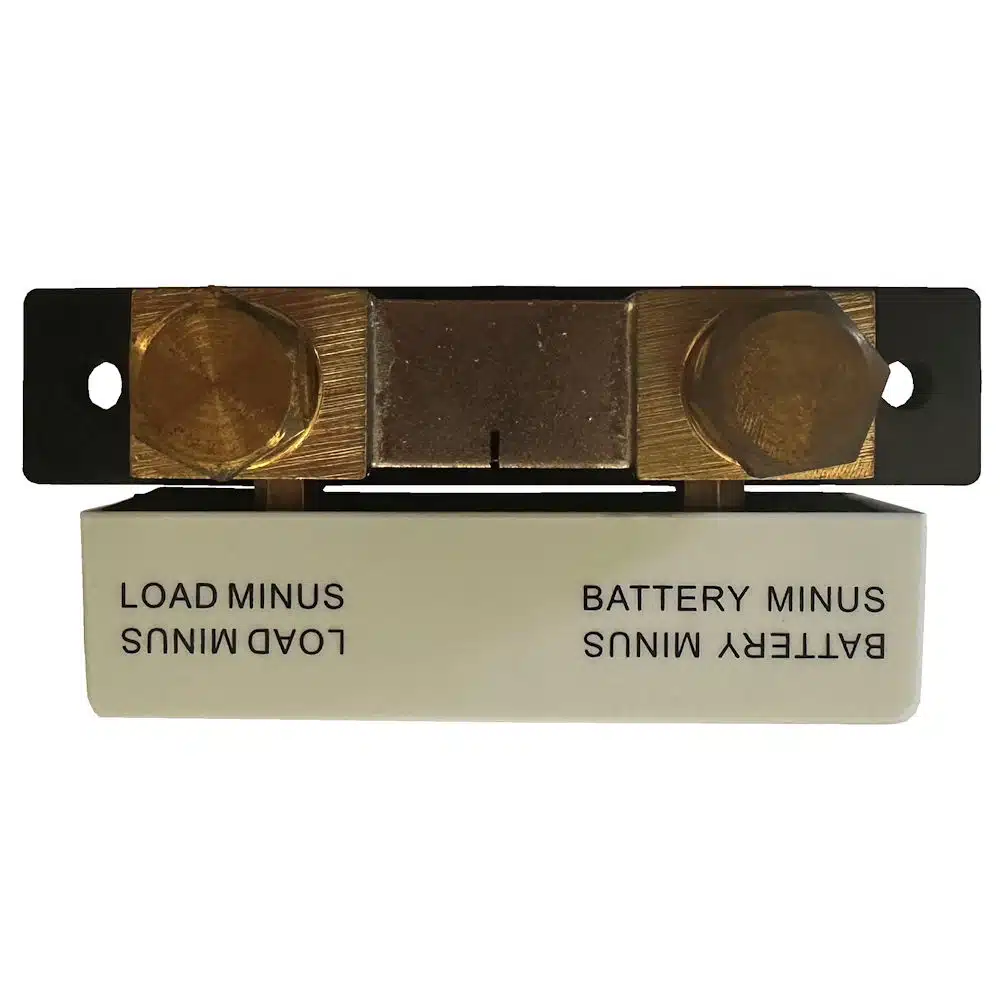

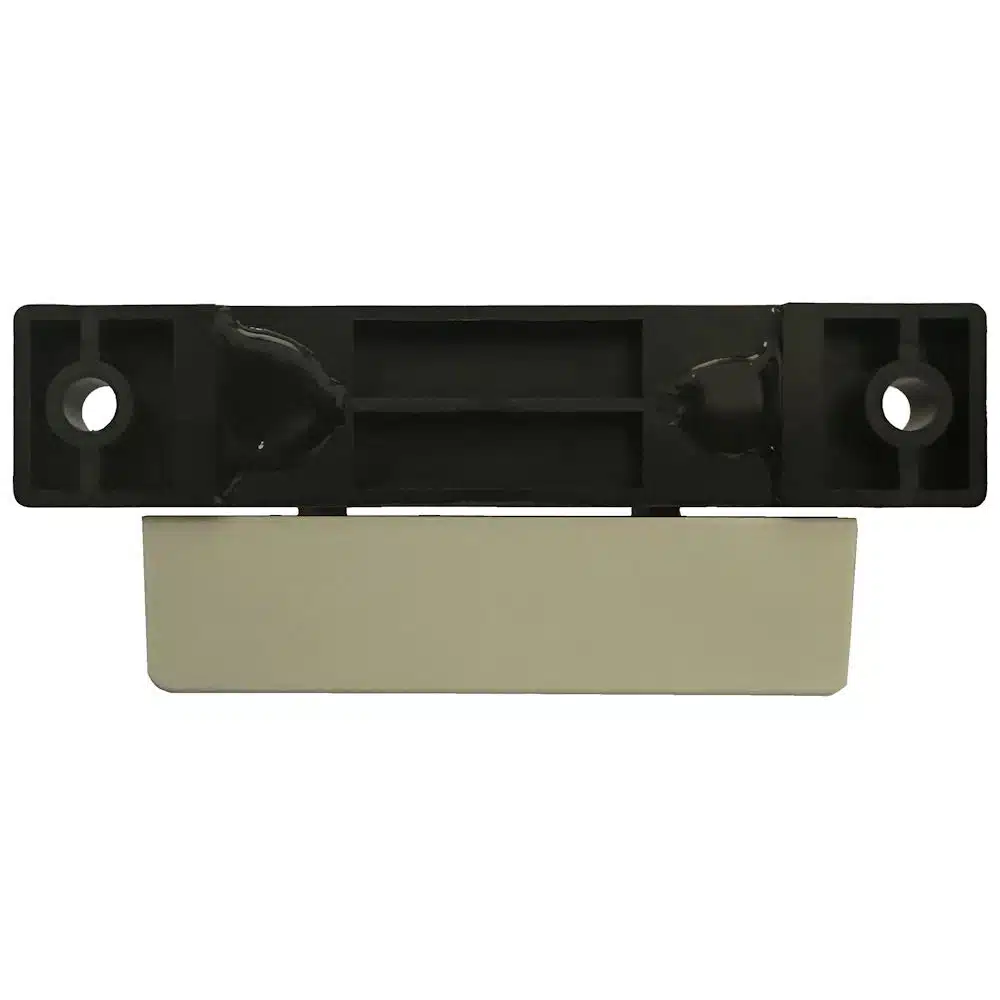

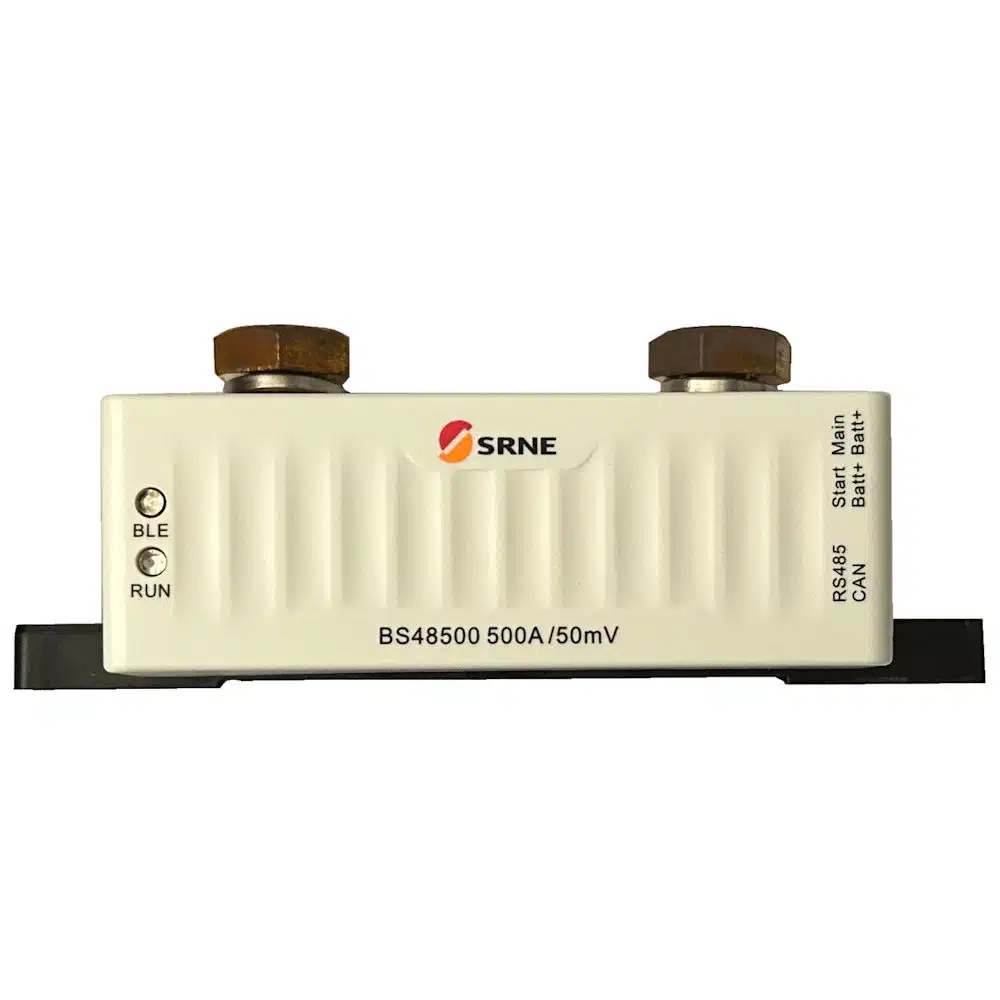

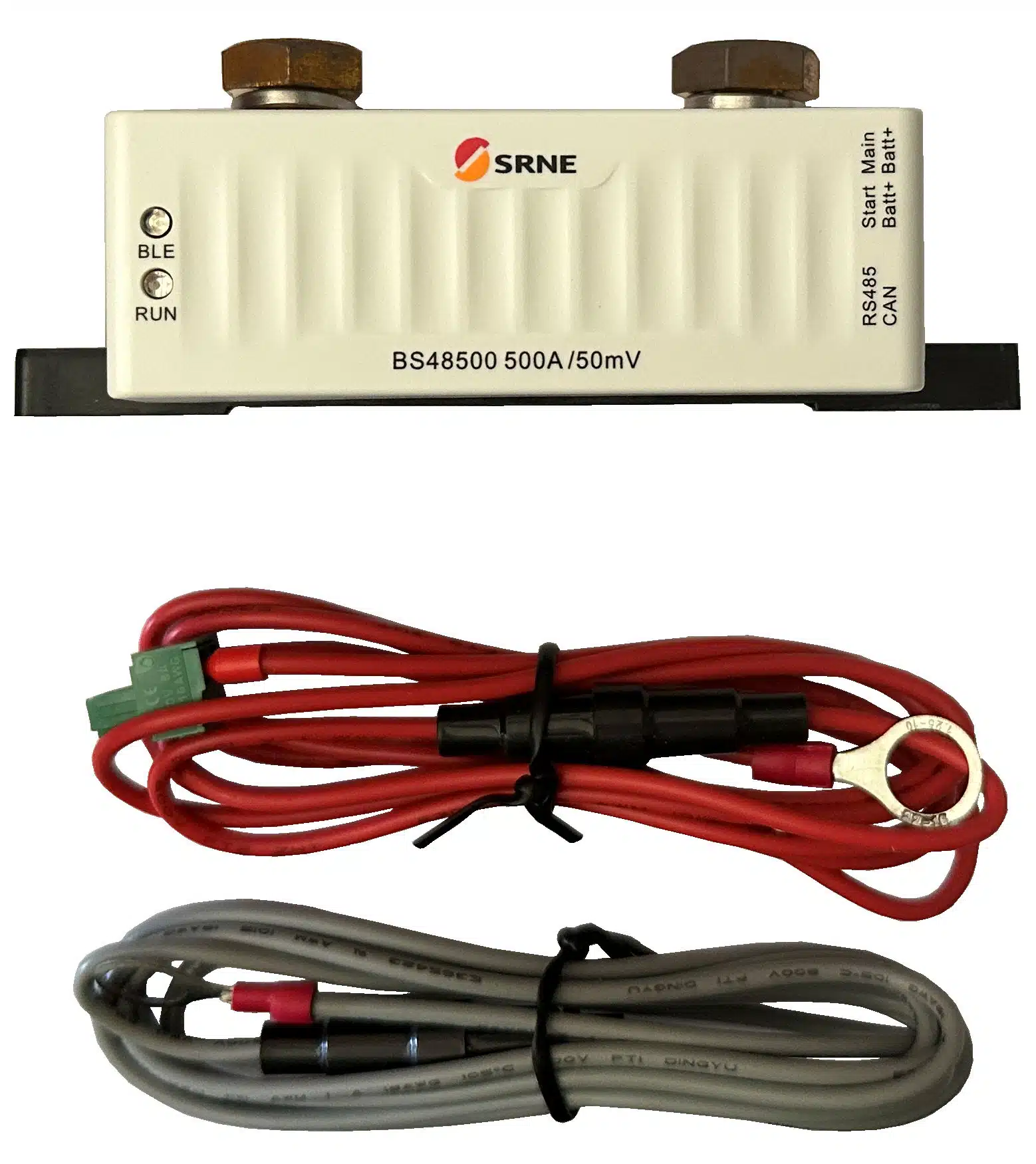

500A 75V Smart Shunt
$178.00
In stock
Description
- Convenient Monitoring: Features standard Bluetooth for viewing product status and battery monitoring parameters in real-time.
- Versatile Battery Support: Compatible with sealed lead-acid, gel, open and lithium batteries.
- Multiple Voltage Systems: Supports 12V, 24V, 36V, and 48V battery systems.
- High Precision Measurement: Uses advanced current sampling to measure up to 500A of charge and discharge current.
- Accurate Power Monitoring: Employs an advanced SOC algorithm to measure battery power and calculate remaining battery life.
- Comprehensive Tracking: Supports cycle count and State of Health (SOH) estimation.
- Customisable Capacity: Allows for battery capacity setting adjustments.
- Reliable Communication: Supports standard Modbus protocol RS485 communication with adjustable baud rates.
- Enhanced Connectivity: Includes CAN communication functionality.
Technical Parameters
| Static Power | ≤15mA |
| Supply Voltage | 6.5-75V |
| Rated Current | 500A |
| System Voltage | 12/24/36/48V |
| Battery Capacity | 1-9999AH |
| Current Resolution | ±0.01A |
| Voltage Resolution | ±0.01V |
| SOC resolution | ±0.1% |
| Time Accuracy | ±1Min |
| Current Measurement Accuracy | ±0.4% |
| Voltage Measurement Accuracy | ±0.3% |
| RS485 Communication | 9600bps, 8, 1, None, the default baud rate is 9600bps |
| Bluetooth Communication | Built-in Bluetooth, supports APP data interaction and OTA upgrade |
| CAN Communication | Support RV-C protocol |
| Historical Data | Can store the last 60 days of historical data |
| Working Environment Temperature Range | -35 to + 65⁰C |
| Protection Level | IP21 |
| Cooling Method | Natural heat dissipation |
| Size | 120 x 48.3 x 45.9mm |
| Weight | 0.35kg |
