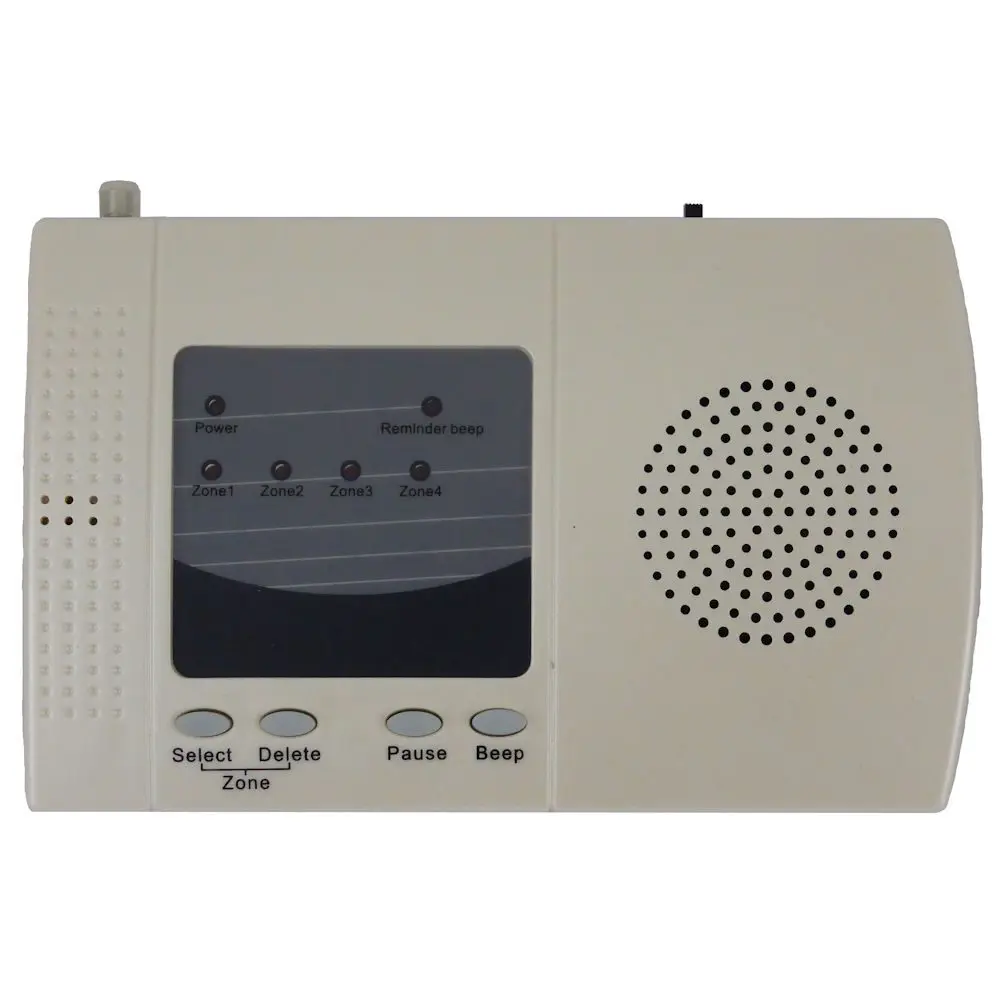

Alarm Receiver

This Alarm Receiver has a minimum power consumption of only 0.3 Watt. Used with our Solar Beam Sensor (sold separately), make your home safer and the earth greener.

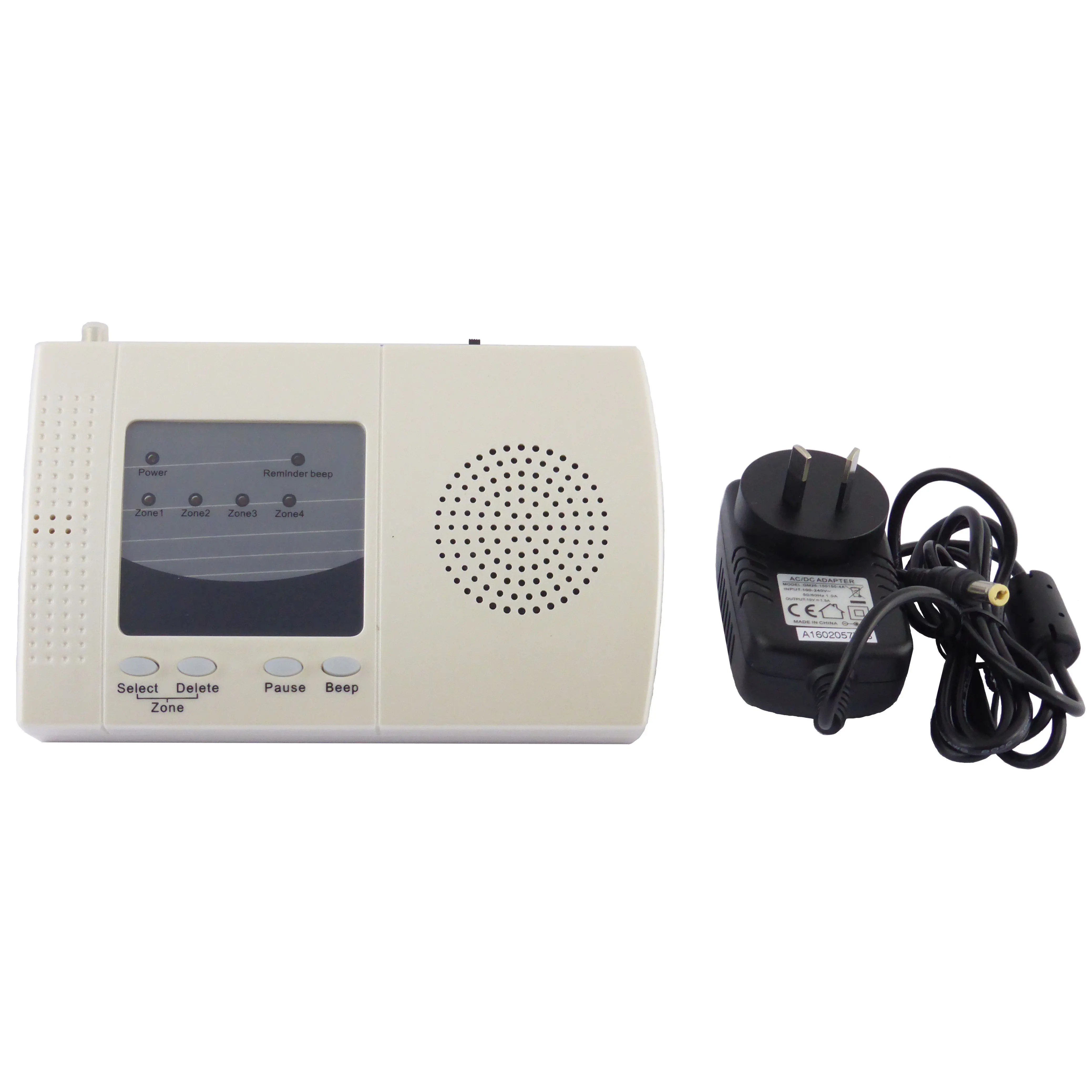

The receiver uses power supply from a standard wall outlet and can be placed on a table or mounted on the wall.

When receiver gets a signal from the Detector one of 4 different tones (beep, wind-bell, plink, clarino) will sound for about 8 seconds. There is also a volume control so you can set the sound to the desired level. The receiver is also equipped with 4 form “c” relays (one for each zone) and one 14VDC output terminal that can activate when a signal is received.

The receiver can be user programmed so the 14VDC terminal and relays will activate for 1 second, 10 seconds, 60 seconds or 5 minutes. the tones will sound for several seconds.

Please Note: for maximum range between the Detector and receiver, the receiver should be mounted horizontally on a wall and as high off the floor as possible. Although the maximum range is about 300-800 meters, things such as hills, trees, metal siding and stucco can all reduce the range.

• Frequency: 434.6MHz
• Operating voltage: 15VDC
• Operating current: Standby 20mA, Alarming 180mA
• 14Volt DC output current: 400ma maximum
• Relay rating: 24VDC or 120VAC at 2A
