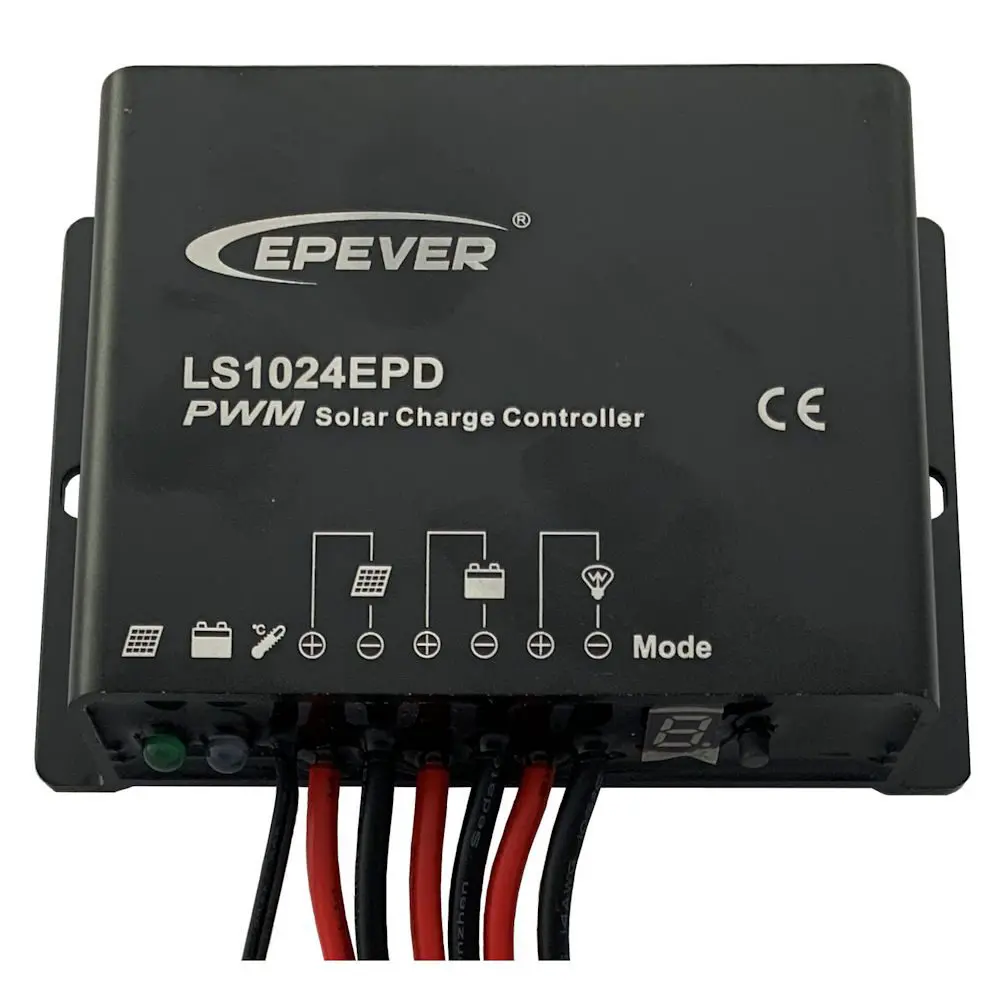

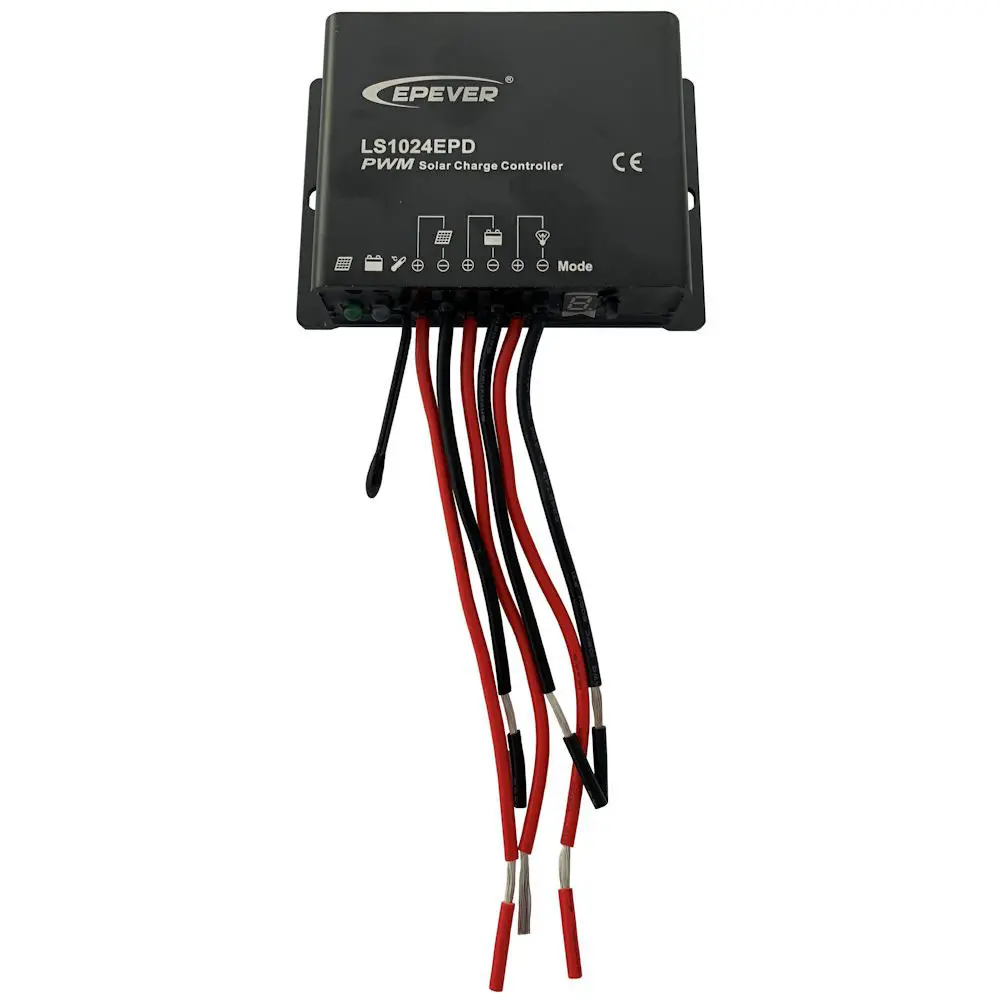

LSEPD series solar charge controller adopts the most advanced digital technique and operates fully automatically. It is ideal for extreme environments with corrosion, dust, moisture etc., and has various functions.
Features:
- High efficient PWM charging
- Widely used, automatically recognize day/night
- LED indicators for PV and battery status
- Industrial design, wide application range
- Digital tube menu, only one key solve all settings simply
- Intelligent timer function with 1～13 hours option
- IP67 protection
Electronic protections:
- PV reverse polarity protection
- Battery overcharge protection
- Battery over discharge protection
- Battery overheating protection
- Battery reverse polarity protection
- Load overload protection
- Load short circuit protection
| Nominal system voltage | 12/24V auto |
| Max. PV input voltage | 50V |
| Equalize charging voltage* | 14.8V(12V); 29.6V(24V) |
| Boost charging voltage* | 14.4V(12V); 28.8V(24V) |
| Float charging voltage* | 13.7V(12V); 27.4V(24V) |
| Low voltage reconnect voltage* | 12.6V(12V); 25.2V(24V) |
| Low voltage disconnect voltage* | 11.1 V(12V); 22.2V(24V) |
| Self-consumption | 12V: ≤4.58mA; 24V: ≤6.01mA |
| Temperature compensation coefficient | -5mV/℃/2V (25℃) |
| Working temperature | -35℃～+55℃ |
| Enclosure | IP67 |
| Overall dimension | 108.5mm x 75mm x 25.6mm |
| Mounting dimension | 100.5mm |
| Mounting hole size | Φ5 |
* Technical data for 12V system at 25℃
