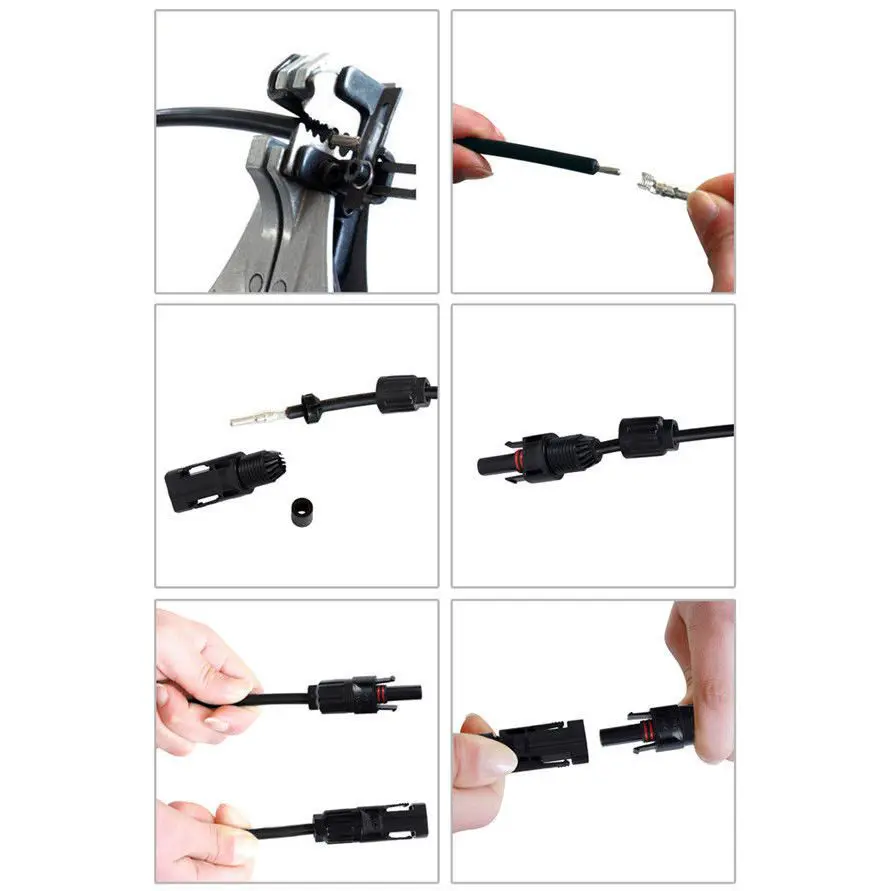

These single core wire connectors help with easy installation of a solar system. They are sturdy, dust-proof and waterproof. They can be used to install the larger solar panels we sell.
The Latest Structure
- Connection sturdy and fast
- Dust-proof and waterproof
- TUV certified
- Suitable for solar power generation system
Electrical Features
- Rated Current: 30A(TUV)
- Withstanding Voltage: 1000V DC(TUV)
- Contact Resistance: ≤1mΩ
Mechanical Features
- Temperature Range: -40°C to +85°C
- Protection Degree: JP2X, unmated; IP65, unmated
- Wire Size Range: AWG14, AWG12, AWG10
Material Features
- Insulation Material: PPO, black
- Contact Material: Copper, Tinplated
- Flame Class: UL94-V0 or UL94-5VA
