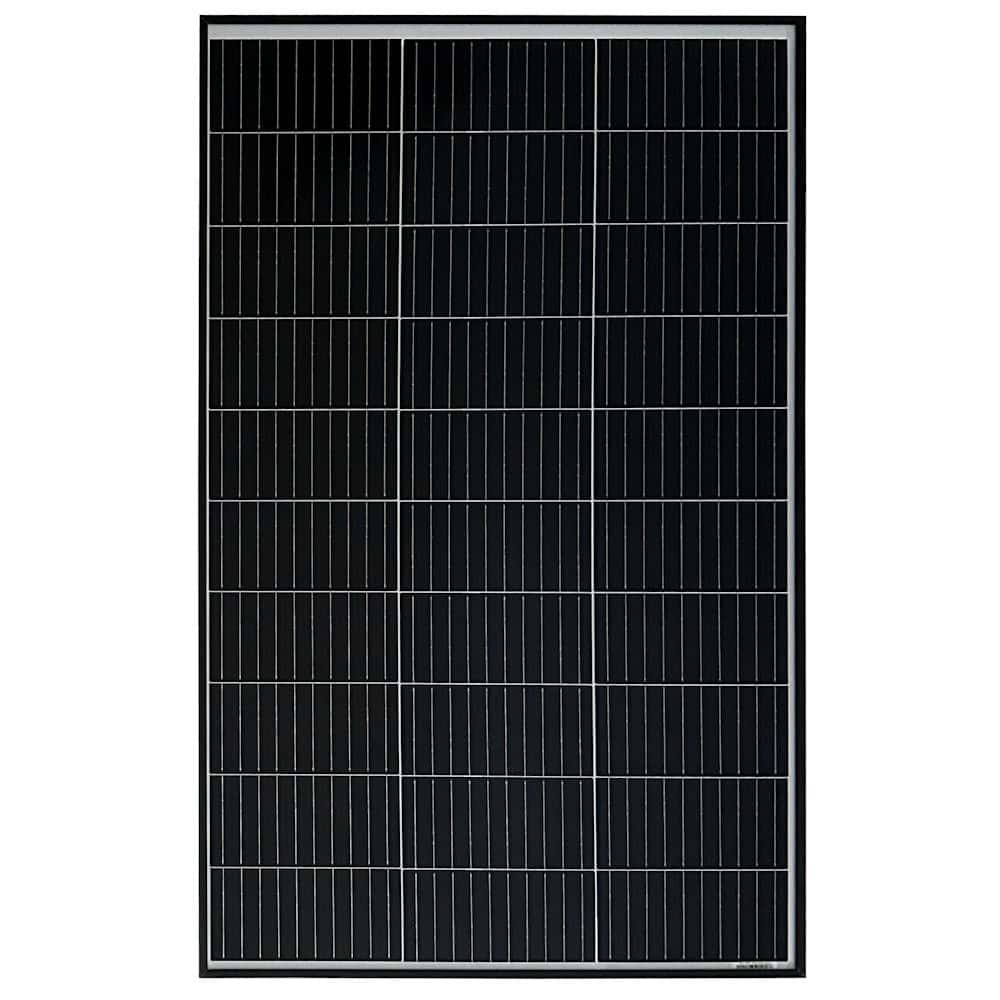

This 140W solar panel has a strong 35mm anodised black frame with toughened glass.
PERC A grade solar cells have been used to give a high-power output.

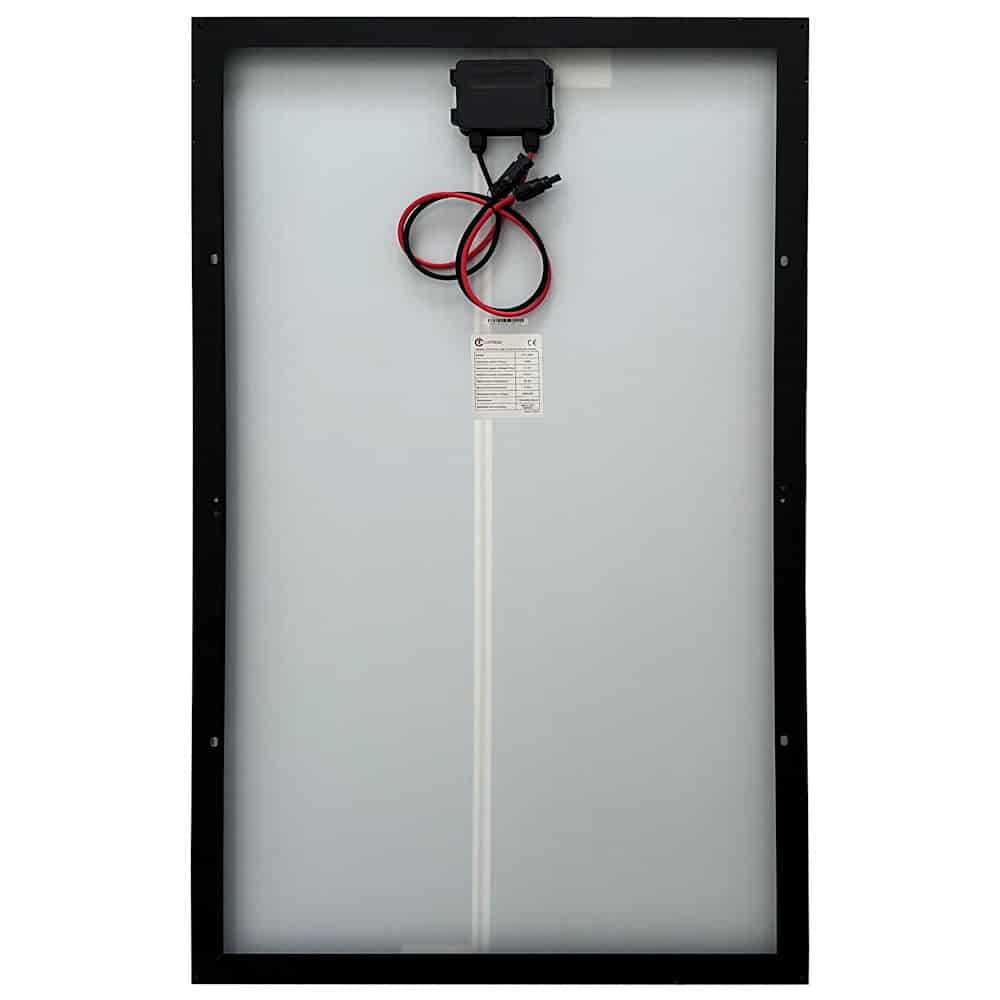

A red positive wire and a black negative wire with solar connectors attached.
Commonly used on vehicles, caravans and motorhomes for charging 12V batteries when connected to a solar regulator.
Please note this product is not compatible with 23V DCDC controllers.

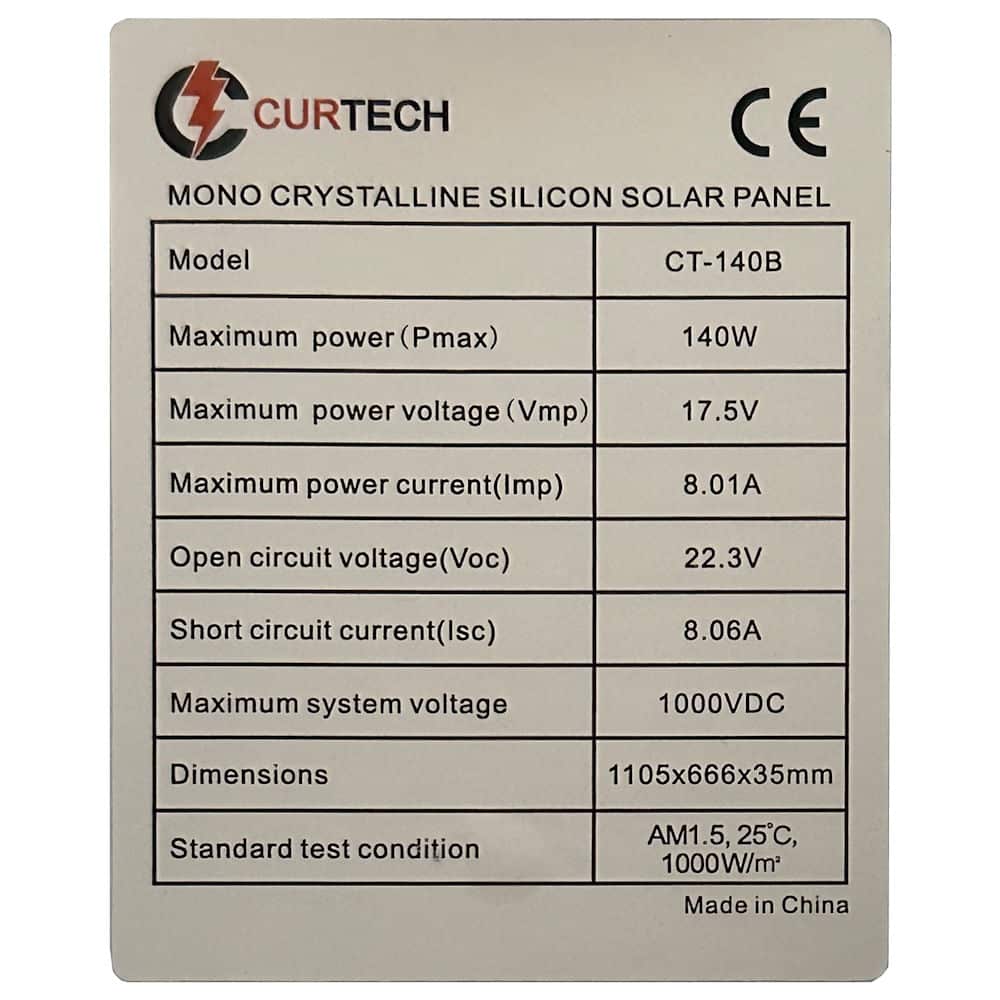

| Maximum power (Pmax) | 140W |
| Maximum power voltage (Vmp) | 17.5V |
| Maximum power current (Imp) | 8.01A |
| Open circuit voltage (Voc) | 22.3V |
| Short circuit voltage (Isc) | 8.06A |
| Maximum system voltage | 1000VDC |
| Dimensions | 1105 x 666 x 35mm |
| Weight | 7.8kg |
Tony –
I was sceptical of this panel when I came across it, I emailed and asked about the actual specs, I received a prompt, personalised, very helpful reply from Steve.
I’ve had this installed on my canopy for over 6months now and it produces far more than 140watts, excellent product. I just purchased another for my father in law.
