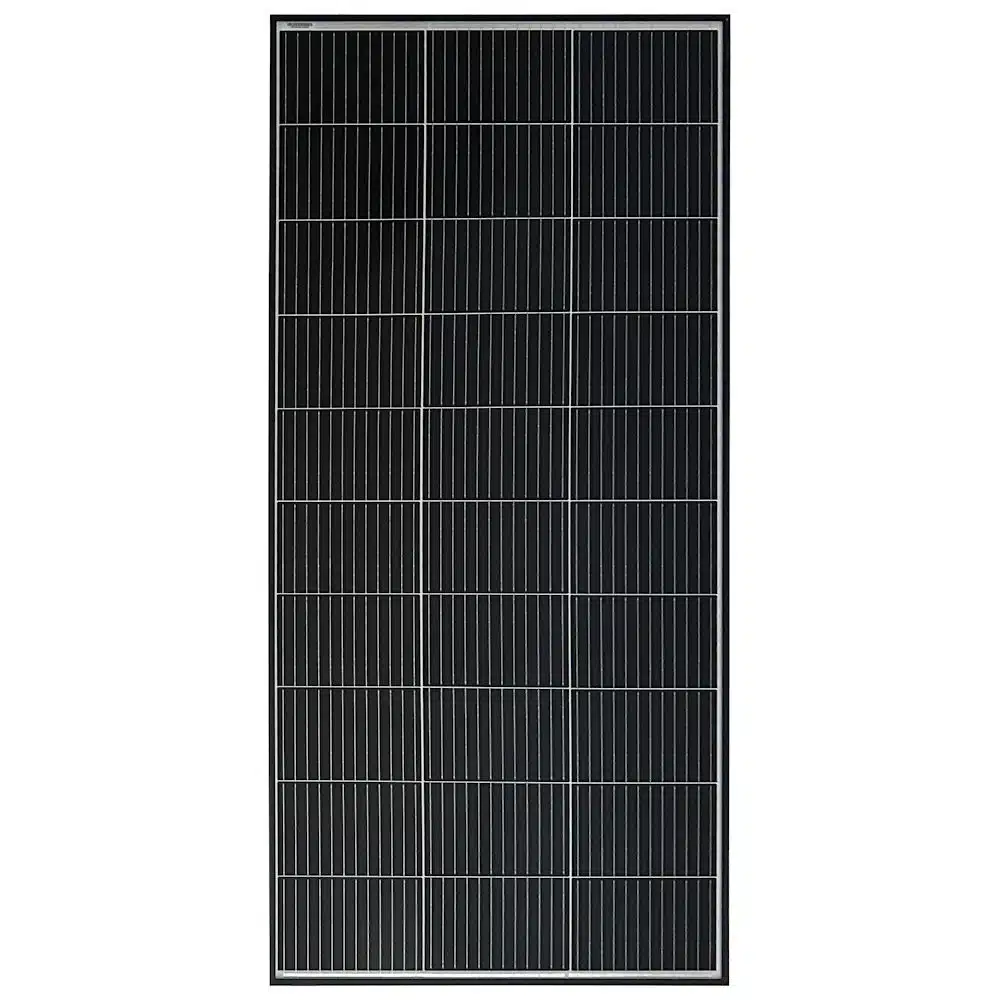

The frame a strong 35mm anodised aluminium and is now available in black. Toughened glass covers the solar cells which protects the panel from harsh conditions.

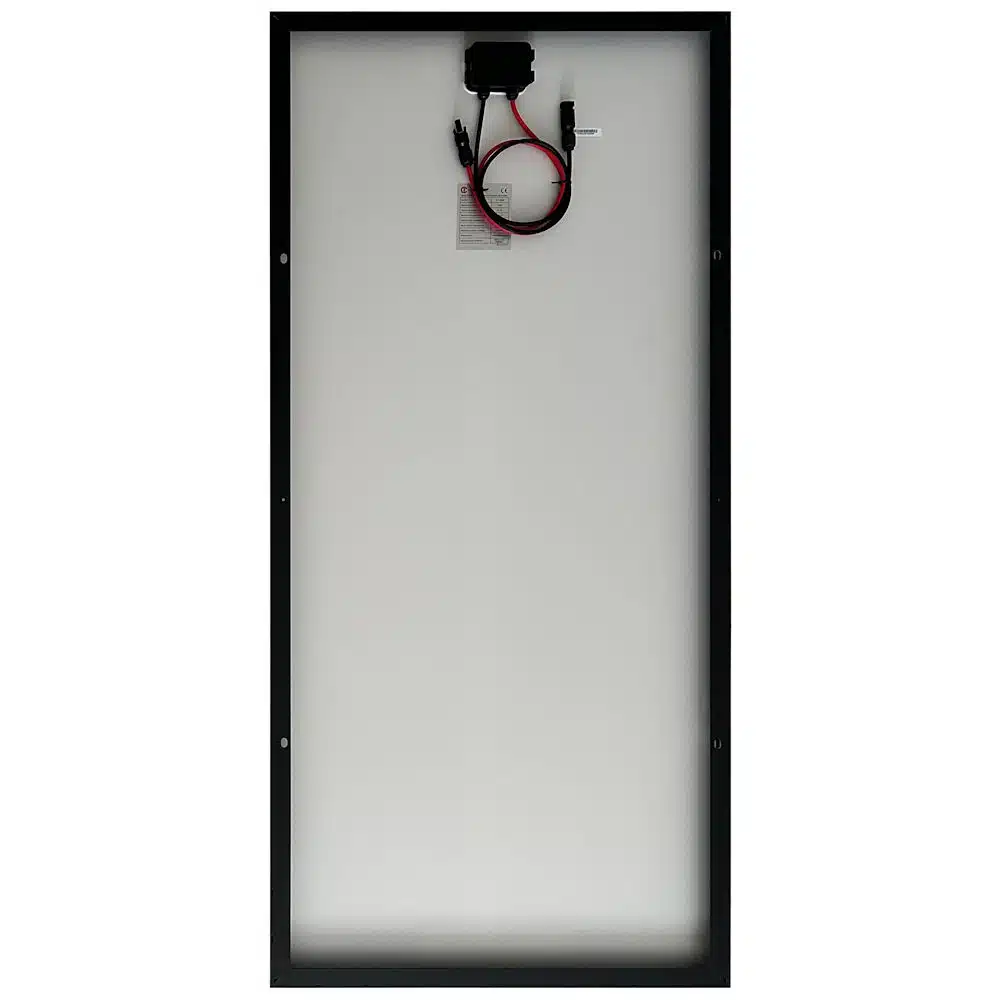

The wiring on the back of the panel is a red positive and a black negative wire with solar connectors installed.
This 180W solar panel will be suited for charging 12V battery banks when installed in parallel or larger voltage systems when installed in series.
A solar regulator should be used to control the charge into a battery/batteries.
These 180 Watt solar panels can be used for caravans, motorhomes, small off grid and vehicles.

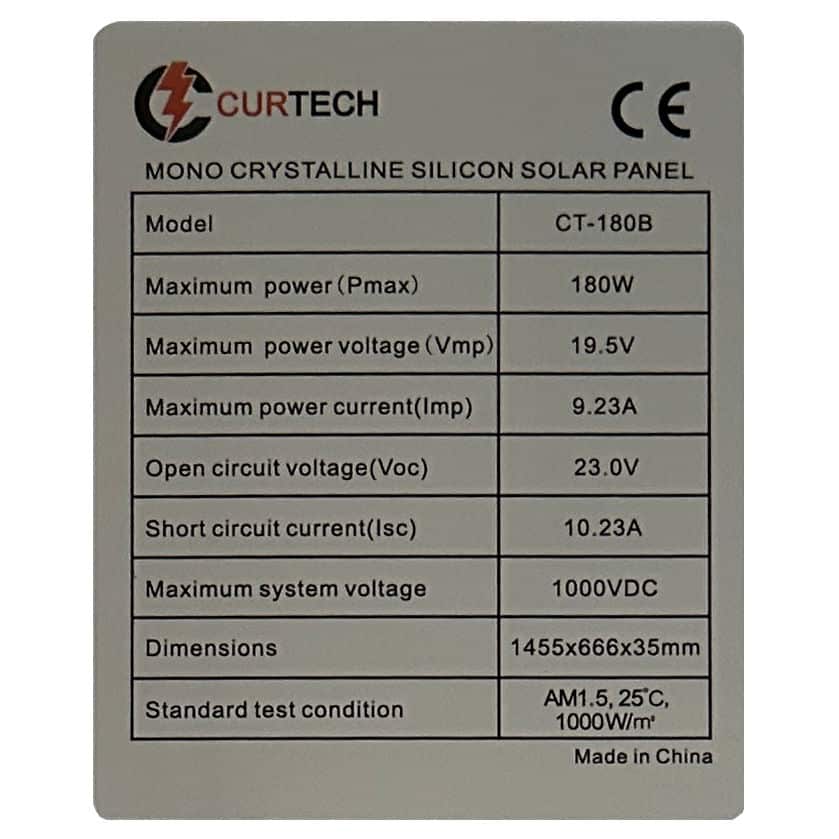

| Maximum power (Pmax) | 180W |
| Maximum power voltage (Vmp) | 19.5V |
| Maximum power current (Imp) | 9.23A |
| Open circuit voltage (Voc) | 23.0V |
| Short circuit voltage (Isc) | 10.23A |
| Maximum system voltage | 1000VDC |
| Dimensions | 1455 x 666 x 35mm |
| Weight | 12.5kg |
