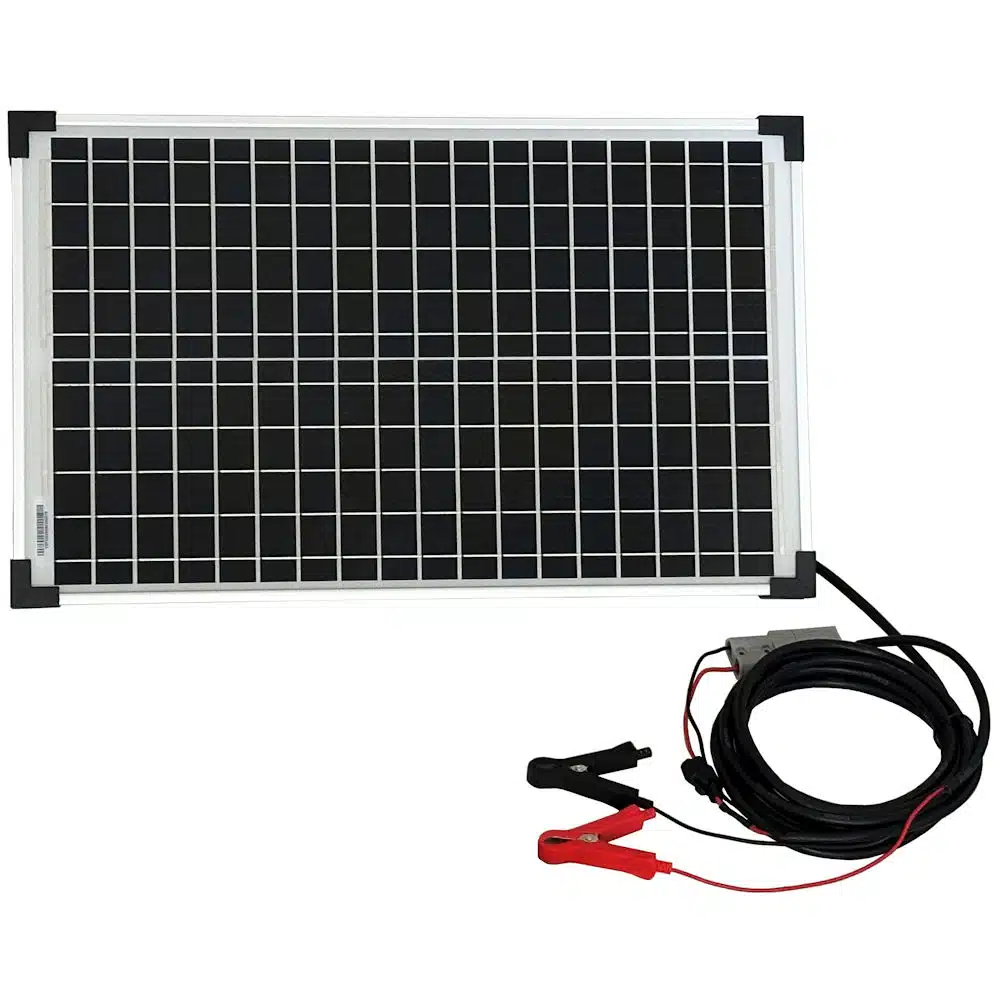

The 35W solar panel kit was designed as a maintenance charger.
It comes with a waterproof 10Amp regulator.
The fused lead is 4.5m long.
The Anderson style plug can be connected to a battery which has an Anderson style connection, or the battery clips can be used to connect to the battery.
The panel is also protected by a set of plastic corners.

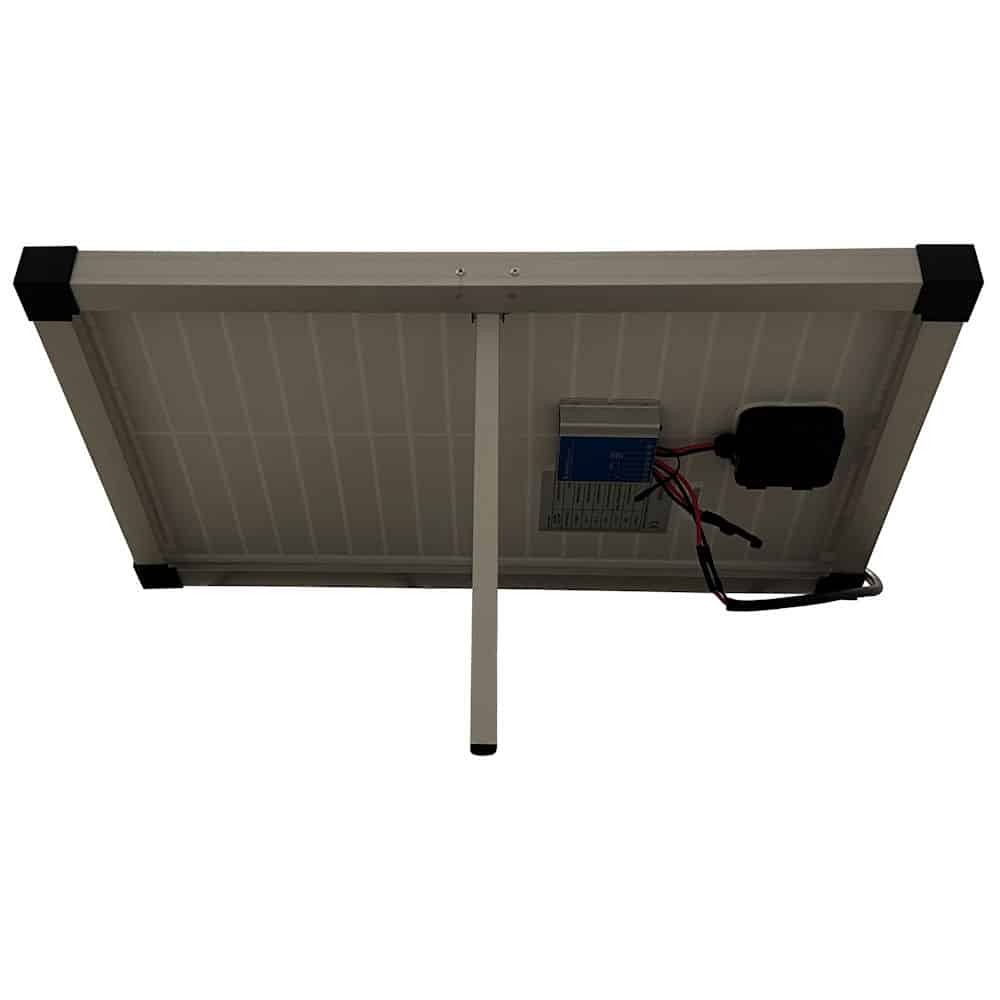

There is a single leg attached to the frame of the panel so the panel can be setup on an angle to catch the maximum amount of sun that is available.
The kit is suitable to charge 12V batteries in many applications such as Caravan, camper trailer, motor home, vehicle, mower, farm machinery and many more.
It is light weight, easy to setup and costs nothing to run.
There is also a hole in each end of the panel where mounting brackets can be attached for permanent installation.
Anodised aluminium frame to resist the harsh weather.
Toughened glass to protect the solar cells.
Great battery maintenance system for many applications.

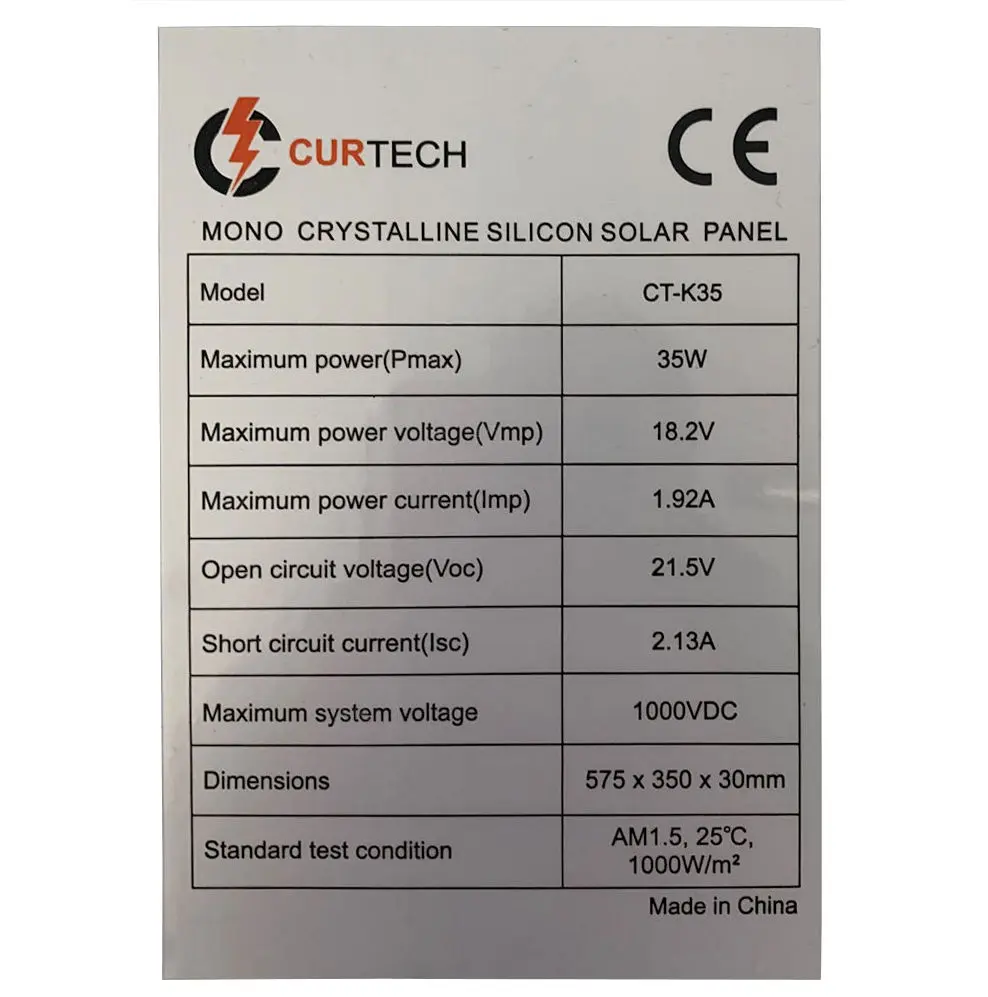

|Maximum power (Pmax)
|Maximum power voltage (Vmp)
|Maximum power current (Imp)
|Open circuit voltage (Voc)
|Short circuit voltage (Isc)
|Maximum system voltage
|575 x 350 x 30mm
|Solar Controller / Regulator
