MT-5 Remote Meter for TRN

MT-5 is an optional accessory for RN series MPPT solar charge controller. The LCD displays the system status and parameters clearly.

Features:

• Display the system status and parameters with digital and graphic icon.
• Battery type selectable
• Battery Ah setting function
• Temperature compensation coefficient adjustable
• Four keys to solve the setting easily
• Control the load by manual

Specifications:

• Rated Voltage 12V, Min Voltage (suggest): 8.0V
• Strong Backlight on <23mA
• Low Backlight on <20mA
• Backlight and LED indicator off <17mA
• Operation temperature -40℃ ~ +60℃
• LCD operation temperature -10℃ ~ +40℃
• Humidity 0-100%
• Communication cable RJ45(8PIN), 2 metres

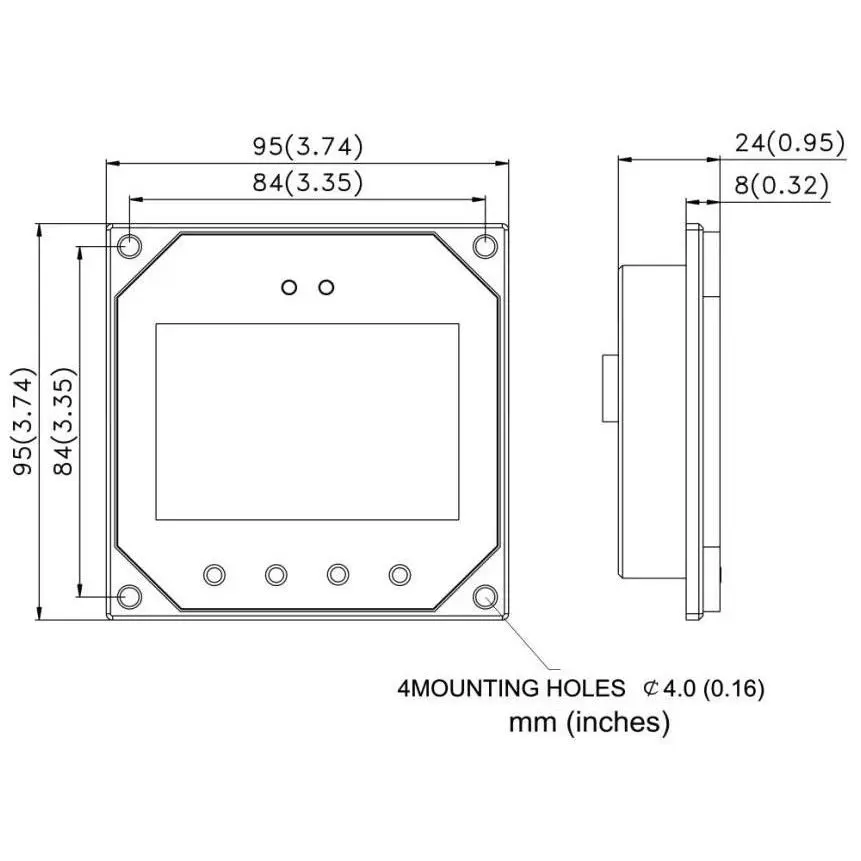

• Dimensions: 95 x 95 x 24mm
