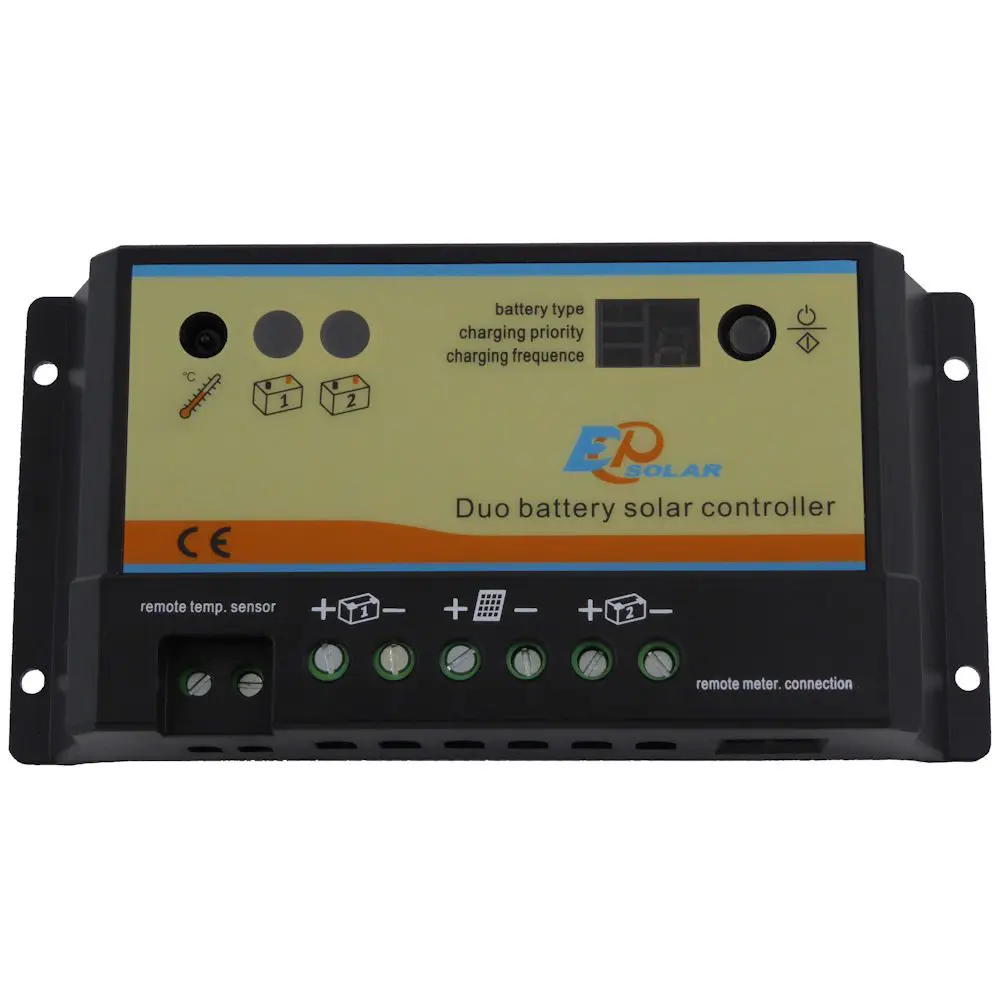

EPIPDB-COM series can charge two batteries at the same time. No load terminals. Two batteries charging from the one regulator eliminates the extra cost of two separate solar charging systems.
This regulator works well for boats with dual batteries. The isolator switch can be turned off but the solar panel can still charge both batteries.
- Intelligent System Optimum Control
- 12/24V auto work
- Battery type selection
- Charging frequency optional
- High efficient Series PWM charging
- Local external temperature compensation
- Remote temperature sensor optional
- Use MOSFET as electronic switch, without any mechanical switch
- Remote meter MT-1 optional (LCD display Meter)
- Load and battery status indicators
- Electronic protection: over charging, short circuit, battery reverse polarity protection
Application: RVs, Caravans, bus, boats etc.
Bazza –
Have installed product, connected to 2 seperate batteries, works good, very pleased with product.
