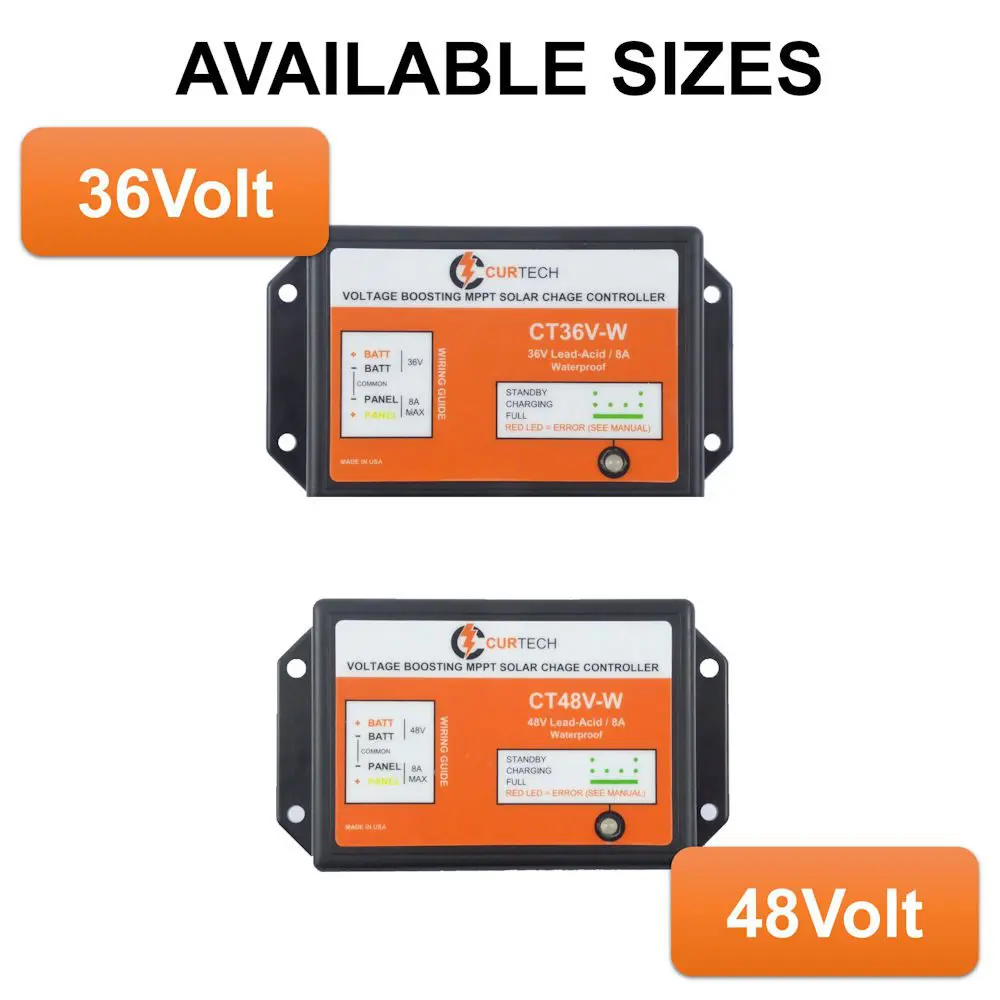

36V or 48V battery charge solar regulator for charging Golf Carts.
These regulators ramp the input voltage up from any connected panel to charge a 36V or 48V battery system.
Waterproof with inline fuse attached.
These regulators now make it possible for large voltage battery systems to be charged by any solar panel.
If you have a camping solar panel or a grid connect solar panel this regulator will increase the input voltage to charge a 36V or 48V battery bank.
Standard 8amp output maximum.
These regulators when connected to a solar panel can increase a golf carts range.
| Rated Panel (Input) Current: | 8A |
| Minimum Panel Voltage for Charging: | 5V |
| Minimum Battery Voltage for Operation: | 9.5V |
| Absolute Maximum Panel Open-Circuit Voltage (Voc): | 60V |
| Absorption Time: | 2 Hours |
| Electrical Efficiency: | 96% – 98% typical |
| Tracking Efficiency: | 99+% typical |
| MPPT Tracking Speed: | 15Hz |
| Environmental: | Waterproof |
| Connection: | Flying Leads, 16 AWG tinned wire, pre-stripped |
| Weight: | 290g |
| Dimensions: | 14 x 8.1 x 5.5cm |
| Warranty: | 2 years |
